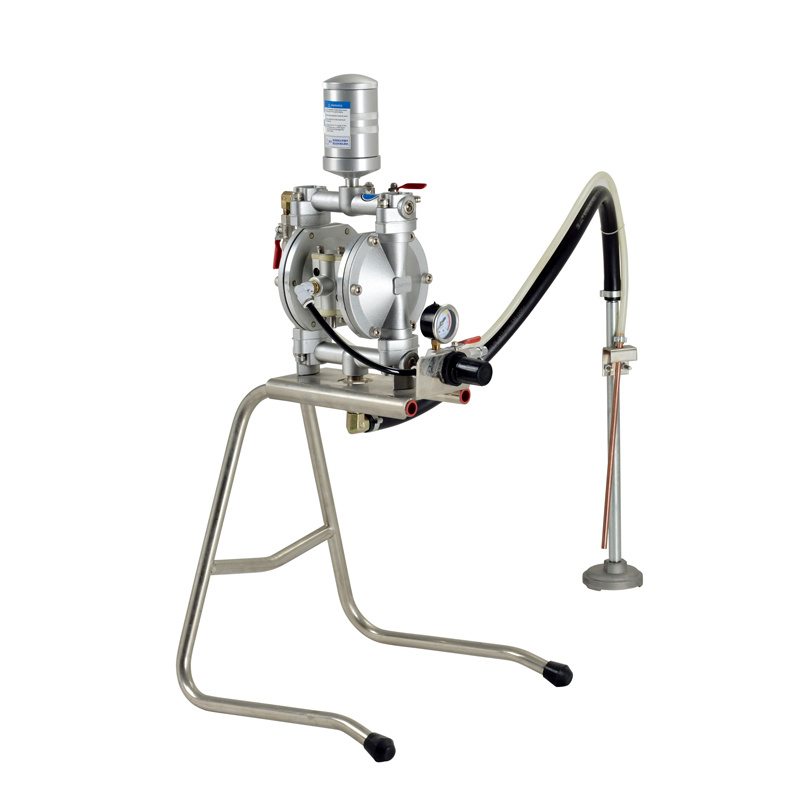

Aluminum alloy pump series WK-A-13JP
Paint interface size: 3/8inch
Maximum working pressure: 7bar
Liquid inlet size: 1/2"NPT
Air inlet size: 1/4"NPT
Minimum starting pressure: flat air valve 1.6bar/low pressure air valve 0.5bar
Maximum flow:18L/Min
Maximum pump speed (idling): 300cpm
Volume per cycle: 0.06L
Maximum gas consumption: 150NL/Min
Maximum diameter of particles: φ2mm
Suction head: 6.4m wet: 3.7m dry

Features:
1. Explosion-proof, safe, durable and stable
2. Low pulsation

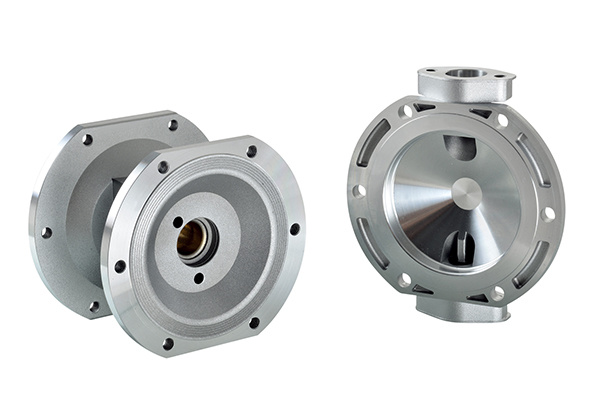

3. Pump inner side cover is mirror finishing, allowing paint to flow smoothly
