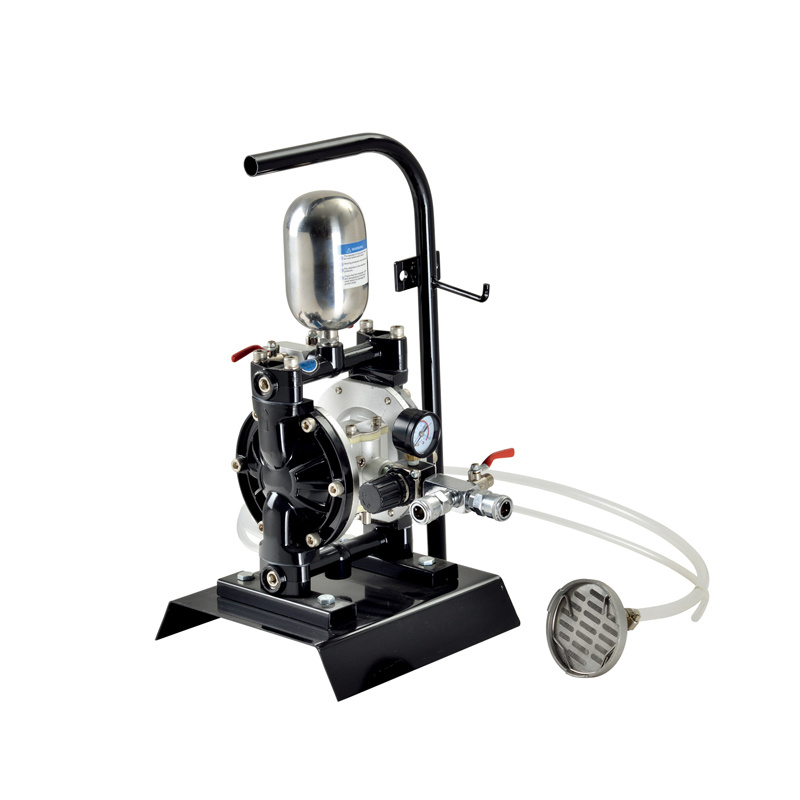

Aluminum alloy pump series A-10-1C
Paint interface size: 3/8inch
Maximum working pressure: 7bar
Liquid inlet size: 3/8"NPT
Air inlet size: 1/4"NPT
Minimum starting pressure: flat air valve 1.6bar/low pressure air valve 0.5bar
Maximum flow:13L/Min
Maximum pump speed (idling): 300cpm
Volume per cycle: 0.06L
Maximum gas consumption: 150NL/Min
Maximum diameter of particles: φ2mm
Suction head: 6.4m wet; 3.7m dry
Net weight of body: 7KG
Features: explosion-proof, safe, durable and stable.
