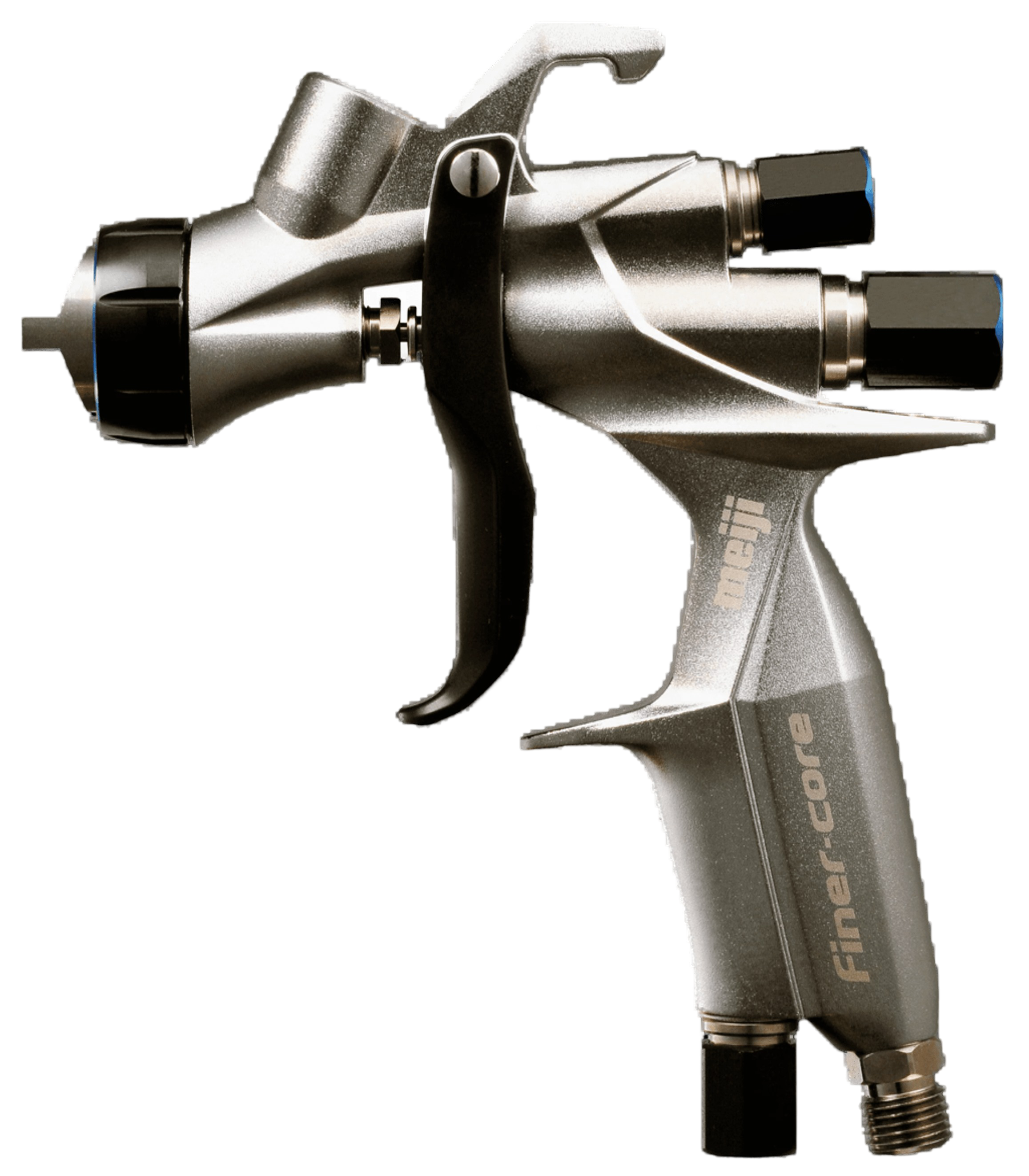

PDF Download: Meiji Finer-Core Gravity Brochure
| Model | FINER-CORE-13 | FINER-CORE-15 | FINER-CORE-HVLP-13 | FINER-CORE-HVLP-15 |
|---|---|---|---|---|
| Fluid nozzle bore | 1.3mm(0.051in) | 1.5mm(0.059in) | 1.3mm(0.051in) | 1.5mm(0.059in) |
| Air cap style | FINER-CORE | FINER-CORE-HVLP | ||
| Spraying pressure | 0.2MPa 29PSI | 0.18MPa 26PSI (0.07MPa 10PSI) |
||
| Spraying distance | 200mm (7.874in) | |||
| Air consumption | 300L/min(10.6cfm) | 380L/min(13.4cfm) | ||
| Paint spraying volume | 170mL/min | 200mL/min | 135mL/min | 155mL/min |
| Maximum effective pattern | 280mm(11.024in) | 300mm(11.811in) | 280mm(11.024in) | 300mm(11.811in) |
| Connection bore | accepts G1/4 1/4NPS for air G3/8 for paint | |||
| Body weight | 340g
0.75lbs 11.9oz |
|||
